ZYC Self-operated Differential Pressure Control Valve
Product overview
Product model: ZYC
Nominal pressure: 1.6MPa
Nominal diameter: 15 ~ 125mm
Applicable medium: water, oil and other non-corrosive liquids
Applicable temperature: 0 ~ 100℃
Differential pressure control range: constant pressure difference type 10KPa, 20KPa, 30KPa
Flange standard: GB/T 17241.6 GB/T 9113
Test standard: GB/T 13927 API598
ZYC Self-operated Differential Pressure Control Valve Overview:
ZYC Self-operated Differential Pressure Control Valve produced and sold by Baigang valve group is a kind of energy-saving products that use self-control of pressure changes of medium to keep the pressure difference flowing through the controlled system medium unchanged. It is suitable for the heating mode to adopt the pressure control of double pipe system to ensure the pressure drop of the system is basically the same, reduce the noise, balance the resistance and eliminate the hydraulic imbalance of the heating network.

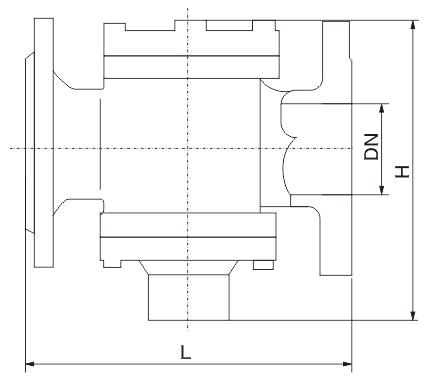

ZYC Self-operated Differential Pressure Control Valve main dimensions:
| DN (mm) | Connection method | L (mm) | H | H1 | Flow m3 / h | Suitable media | Medium temperature | The main part material |
| 15 | Thread | 110 | 72 | 98 | 0.2-1 | water | 0 ~ 100 ℃ |
Body, cover and lower cover for the casting of brass, spool for the copper, nylon diaphragm for the rubber, stainless steel spring |
| 20 | 110 | 72 | 98 | 0.3-1.5 | ||||
| 25 | 115 | 82 | 102 | 0.5-2 | ||||
| 32 | Flange | 160 | 91 | 94 | 1-4 | |||
| 40 | 200 | 147 | 112 | 1.5-6 | ||||
| 50 | 215 | 120 | 112 | 2-8 | ||||
| 65 | 220 | 125 | 120 | 3-12 | ||||
| 80 | 275 | 188 | 133 | 5-20 | ||||
| 100 | 290 | 208 | 160 | 10-52 | ||||
| 125 | 310 | 226 | 175 | 15-45 | ||||
| 150 | 350 | 258 | 195 | 30-80 | ||||
| 200 | 430 | 301 | 230 | 40-180 | ||||
| 250 | 520 | 367 | 265 | 100-300 | ||||
| 300 | 635 | 430 | 300 | 150-500 | ||||
| 350 | 670 | 504 | 340 | 200-700 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the ZYC Self-operated Differential Pressure Control Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
