H44X(SFCV) Rubber Disc Check Valve
Product overview
Product model: H44X(SFCV)
Nominal diameter: DN50~600mm
Nominal pressure: PN1.0~1.6MPa
Applicable medium: water and weak corrosive fluid
Applicable temperature: 0~80℃
Flange standard: GB/T17241.6, GB/T 9113
Test standard: GB/T13927, API598
H44X(SFCV) Rubber Disc Check Valve main part material
|
Part Name |
Body |
cap |
Disc |
|
material |
cast iron |
cast iron |
Steel + reinforced nylon cloth |
H44X(SFCV) Rubber Disc Check Valve main specifications
|
Model |
Nominal pressure PN (MPa) |
Seal test pressure (MPa) |
Shell test pressure (MPa) |
Maximum working pressure (MPa) |
Medium insulation |
|
H44X-10 |
1.0 |
1.1 |
1.5 |
1.0 |
0-80 ° C |
|
H44X-16 |
1.6 |
1.76 |
2.4 |
|

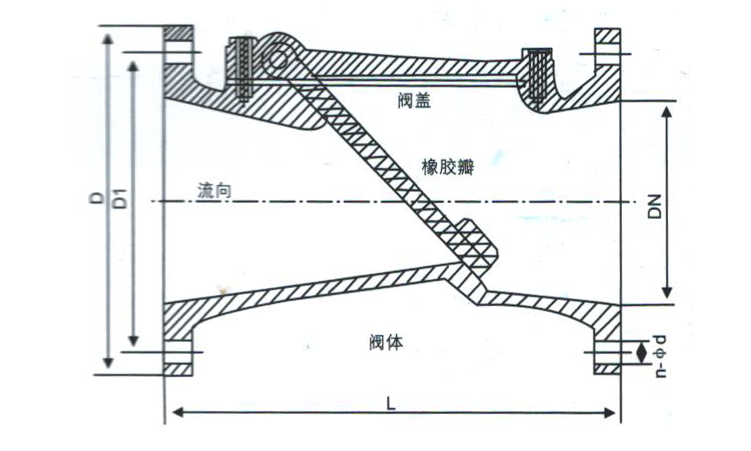

H44X(SFCV) Rubber Disc Check Valve main dimensions (flange connection size according to the provisions of GB4216)
|
Model |
DN |
L |
D |
D1 |
dn |
n |
|
H44X-10 16 |
50 |
203 |
165 |
125 |
17.5 |
4 |
|
65 |
216 |
185 |
145 |
17.5 |
4 |
|
|
80 |
241 |
200 |
160 |
17.5 |
8 |
|
|
100 |
292 |
220 |
180 |
17.5 |
8 |
|
|
150 |
356 |
285 |
240 |
22 |
8 |
|
|
200 |
495 |
240 |
295 |
22 |
8 |
|
|
250 |
622 |
395 |
350 |
22 |
12 |
|
|
300 |
698 |
445 |
400 |
22 |
12 |
|
|
350 |
787 |
505 |
460 |
22 |
16 |
|
|
400 |
914 |
565 |
515 |
22 |
16 |
|
|
450 |
978 |
615 |
565 |
26 |
20 |
|
|
500 |
978 |
670 |
620 |
26 |
20 |
|
|
600 |
1295 |
780 |
725 |
30 |
20 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the H44X(SFCV) Rubber Disc Check Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
