200X Pressure Relief Valve

Product overview

Product model: 200X
Nominal diameter: DN50~1000mm
Nominal pressure: 1.0~2.5MPa
Applicable medium: water
Applicable temperature: 0~80℃
Structure length standard: GB/T12221-2005
Standard of connection flange: GB/T9113
Pressure and temperature grade: GB/T12224-2005
Test inspection standard: GB/T13927-2008

200X Pressure Relief Valve product details

200X Pressure Relief Valve (adjustable pressure reducing valve) Structural features and uses:

200X pressure reducing valve (adjustable pressure reducing valve) produced and sold by Baigang valve group, the main valve, pilot valve, needle valve, ball valve, miniature filter and pressure gauge Composition of hydraulic control system. When used, when adjusted after the outlet pressure, can automatically maintain a stable outlet pressure. Baigang valve group production and sales of 200X pressure regulating valve (adjustable pressure reducing valve) by the main valve, pilot valve, needle valve, ball valve, micro filter and pressure gauge hydraulic control system.When in use, when the outlet pressure is set, it can automatically maintain a stable outlet pressure.

200X pressure reducing valve utilizes pilot valve self-control, does not require other devices and energy, easy maintenance, high pressure control accuracy, pressure and flow by the import of small, reliable decompression and voltage regulator.

200X valve products are widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.

200X Pressure Relief Valve (adjustable pressure reducing valve) Working principle:
When the valve from the inlet side of the water, the water flow through the needle valve into the main valve control room, the outlet pressure through the conduit to the pilot valve. When the outlet pressure is higher than the set value of the pilot valve, the pilot valve is closed. Control room to stop drainage, then the main valve control room pressure and shut off the main valve, the outlet pressure is no longer increased.
When the valve outlet pressure drops to set the pilot valve spring pressure, pilot valve open, the control room to the downstream drainage. As the pilot valve system displacement is greater than the needle valve inlet, the main valve control room pressure drop. Import pressure to open the main valve. In a steady state, the control room water, the same drainage, the main valve opening unchanged, the outlet pressure is stable. Adjust pilot valve spring to set outlet pressure.

200X Pressure Relief Valve main technical parameters:

Nominal pressure (Mpa)	Shell test pressure (MPa)	Seal test pressure (MPa)	The maximum inlet pressure (MPa)	Export adjustable pressure (MPa)	Suitable media	Medium temperature (℃)
1.0	1.5	1.1	1.0	0.09-0.8	water	0-80
1.6	2.4	1.76	1.6	0.10-1.2
2.5	3.75	2.75	2.5	0.15-1.6

200X Pressure Relief Valve main parts material:

Part Name	Parts and materials
Body valve cover	WCB
Valve seat disc	Copper alloy
O-ring seals	Nitrile rubber
Valve stem	2Cr13
spring	50CrVA
Needle valve	Copper alloy
Ball valve	Copper alloy
Pilot valve	Copper alloy
Micro filter	stainless steel

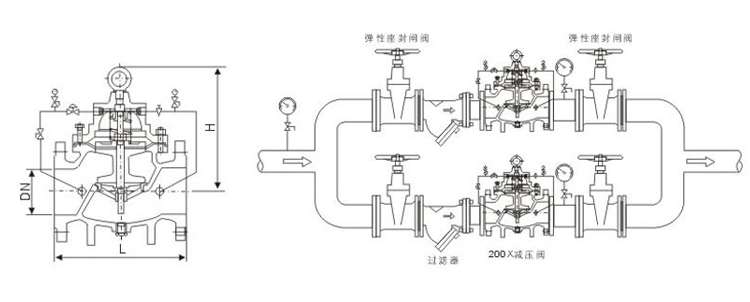

200X Pressure Relief Valve connection size (PN 1.0-2.5MPa):

Nominal diameter DN	L	H	H1	A	B
50	250	335	90	170	170
65	280	345	98	180	180
80	310	355	110	190	190
100	350	365	120	200	200
125	400	445	145	215	215
150	450	460	155	230	230
200	550	505	190	255	255
250	650	550	250	295	295
300	800	710	290	325	325
350	900	725	330	380	380
400	1000	760	360	415	415
450	1000	810	445	435	435
500	1100	865	495	460	460
600	1100	935	550	520	520
700	1450	1000	605	570	570
800	1560	1100	730	620	620
900	1800	1205	800	670	670
1000	2000	1330	910	830	830

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the 200X Pressure Relief Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.

Next：Slow Closed Check Valve

Previous：Remote Control Float Valve
