Piston Type Multi-function Pump Control Valve
Product overview
Product model: XYLDS101/201X
Nominal diameter: DN50~1400mm
Nominal pressure: PN1.0~2.5MPa
Applicable medium: water
Applicable temperature: 0~80℃
Connection type: flange connection
Structure length standard: GB/T12221
Connection flange standard: GB/T 9113
Pressure and temperature grade: GB/T12224
Test inspection standard: GB/T 13927
XYLDS101/201X Piston Type Multi-function Pump Control Valve product description
XYLDS101/201X Piston Type Multi-function Pump Control Valve produced and sold by Baigang valve group is installed on the large-diameter water supply pipe network at the pump outlet, to prevent media backflow, water hammer and water hammer phenomenon intelligent valve. The valve combines electric valve, check valve and water hammer eliminator three functions, which can effectively improve the water supply system safety and reliability. Double-chamber, double-disc construction allows the valve to quickly shut off 90% after the pump has been stopped (prevents reverse flow from causing the pump to reverse) and then slowly shut off the remaining 10% (destructive water hammer) Piston Valves Reliable, high strength , Smooth action, to prevent the pump water hammer and water pump stop the occasion. Just operate the pump motor hoist button, the valve can be automatically opened and closed in accordance with the pump operating procedures, flow, pressure loss.

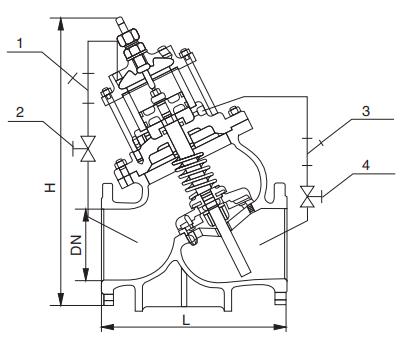

XYLDS101/201X Piston Type Multi-function Pump Control Valve main form of connection size
DN | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 700 | 800 | 900 | 1000 | 1200 | 1400 |
L | 205 | 216 | 250 | 320 | 365 | 415 | 500 | 605 | 698 | 787 | 914 | 978 | 978 | 1300 | 1450 | 1650 | 1800 | 2000 | 2350 |
H | 293 | 328 | 364 | 418 | 481 | 543 | 673 | 729 | 927 | 957 | 1188 | 1218 | 1600 | 2000 | 2300 | 2600 | 2700 | 2860 | 3200 |
Reminder:
All text, data and pictures in this article are for reference only.To see more details of the Piston Type Multi-function Pump Control Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
