600X electric control valve produced and sold by baigang valve group is a hydraulic operated valve with solenoid valve as the guide valve.It is often used in the automatic control of water supply and drainage and industrial system. The control reaction is accurate and fast. According to the electric signal, the pipeline system can be opened and closed remotely to realize the remote operation.


The 600X electric control valve can also replace gate and butterfly valves for large electric operating systems.Valve closing speed is adjustable, smooth closure without pressure fluctuation.The valve is small in size, light in weight, simple in maintenance, easy to use, safe and reliable.Solenoid valve can choose AC 220V, or DC 24V, according to a variety of occasions can choose normally open or normally closed type.

600X Electric Control Valve structure features and uses

600X electric control valve consists of main valve, solenoid pilot valve, needle valve, ball valve, microfilter and pressure gauge to form a hydraulic control takeover system. Through the solenoid pilot valve can be opened and closed on the remote control valve. After installing additional devices, you can control the speed of opening and closing. Electrically controlled hydraulic control valve using the pilot valve to open and close the valve to save energy. Can replace other valves large electric devices. Electrically controlled hydraulic control valve products are widely used in high-rise buildings, living areas and other water supply pipe network systems and urban water supply projects.

600X Electric Control Valve works

When the valve from the inlet end of the water, the water flow through the needle valve into the main valve control room, when the solenoid valve is open, the control room of water through the solenoid pilot valve, ball valve out. Ball valve opening is greater than the needle valve opening, the main valve control chamber pressure is very low, the main valve is fully open state.

When the solenoid valve is closed, the main valve control room of the water can not flow out of the control room to boost the diaphragm to close the main valve.

600X Electric Control Valve main technical parameters

600X Electric Control Valve main parts materials

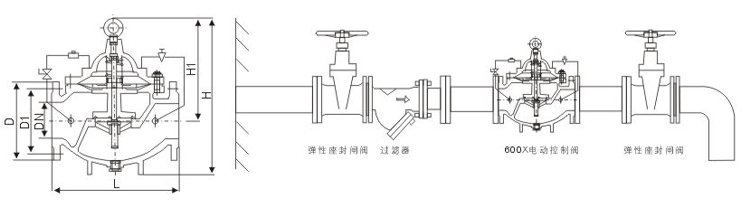

600X Electric Control Valve Connection Size (PN 1.0-2.5MPa)
