D363H/W Butt-welded Hard Seal Butterfly Valve

Product overview

Product model: D363H/W
Nominal menstrual passage: DN100 ~ 1000mm, NPS4" ~ 48"
Nominal pressure: strength test (1.5× Pn) Seal test (1.1× Pn)
Applicable temperature: carbon steel: -29℃ ~ 425℃, stainless steel: -40℃ ~ 650℃
Applicable medium: water, hot water, steam, oil
Drive mode: worm gear drive, electric, pneumatic, hydraulic
Welding standard: GB12224, ANSI B16.25, DIN2559

D363H/W Butt-welded Hard Seal Butterfly Valve product details

D363H/W Butt-welded Hard Seal Butterfly Valve Characteristic
1, the use of three eccentric butterfly valve can be called the top process valve, the design of the valve for high temperature, high pressure, fire-resistant foam sealing ideal sealing valve.
2, due to the use of welding structure, so that the valve and the pipeline plane to achieve a permanent zero leakage.
3, the valve can not be flanged, bringing great convenience and beautiful appearance to the pipe and insulation bandaging.

D363H/W Butt-welded Hard Seal Butterfly Valve main technical parameters

Nominal diameter DN (mm)	DN (100 ~ 400) mm, in4 ~ 48
Nominal pressure PN (MPa)	Strength test (1.5 × PN) Seal test (1.1 × PN)
proper temperature	Carbon steel: -29 ℃ ~ 425 ℃, stainless steel: -40 ℃ ~ 650 ℃
Suitable media	Water, steam, hot water, oil
Drive mode	Worm gear, electric, pneumatic, hydraulic
Pressure Level	ANSI 150Lb / PN25
Welding standards	GB12224, ANSI B16,25, DIN2559

D363H/W Butt-welded Hard Seal Butterfly Valve main components of the material

Part Name	material
Body	Carbon steel, stainless steel, chrome-aluminum steel
Butterfly plate	Carbon steel, alloy steel, stainless steel
Seat	3 stainless steel, cobalt-based cemented carbide
Sleeve	stainless steel
Valve stem	Stainless steel, special materials
Filler	Flexible graphite

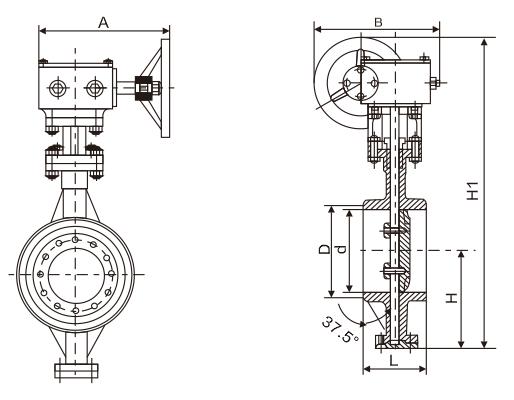

D363H / 663H / D363H/W Butt-welded Hard Seal Butterfly Valve connection size

Nominal diameter		Main dimensions			Nominal diameter		Main dimensions
in	DN (mm)	L	H1	H	in	DN (mm)	L	H1	H
4	100	190	270	370	18	450	330	535	820
5	125	200	295	390	20	500	350	560	900
6	150	210	308	416	24	600	390	630	980
8	200	230	370	530	28	700	430	670	1100
10	250	250	450	580	32	800	470	800	1300
12	300	270	465	630	36	900	510	850	1370
14	350	290	475	595	40	1000	550	880	1480
16	400	310	505	755	48	1200	630	1000	1690

Reminder:

All text, data and pictures in this article are for reference only.To see more details of the D363H/W Butt-welded Hard Seal Butterfly Valve performance parameters, structural dimension parameters, pricing, etc., or to request high quality printing samples, please Contact us.
